Filament Storage Box with PTFE Tubes

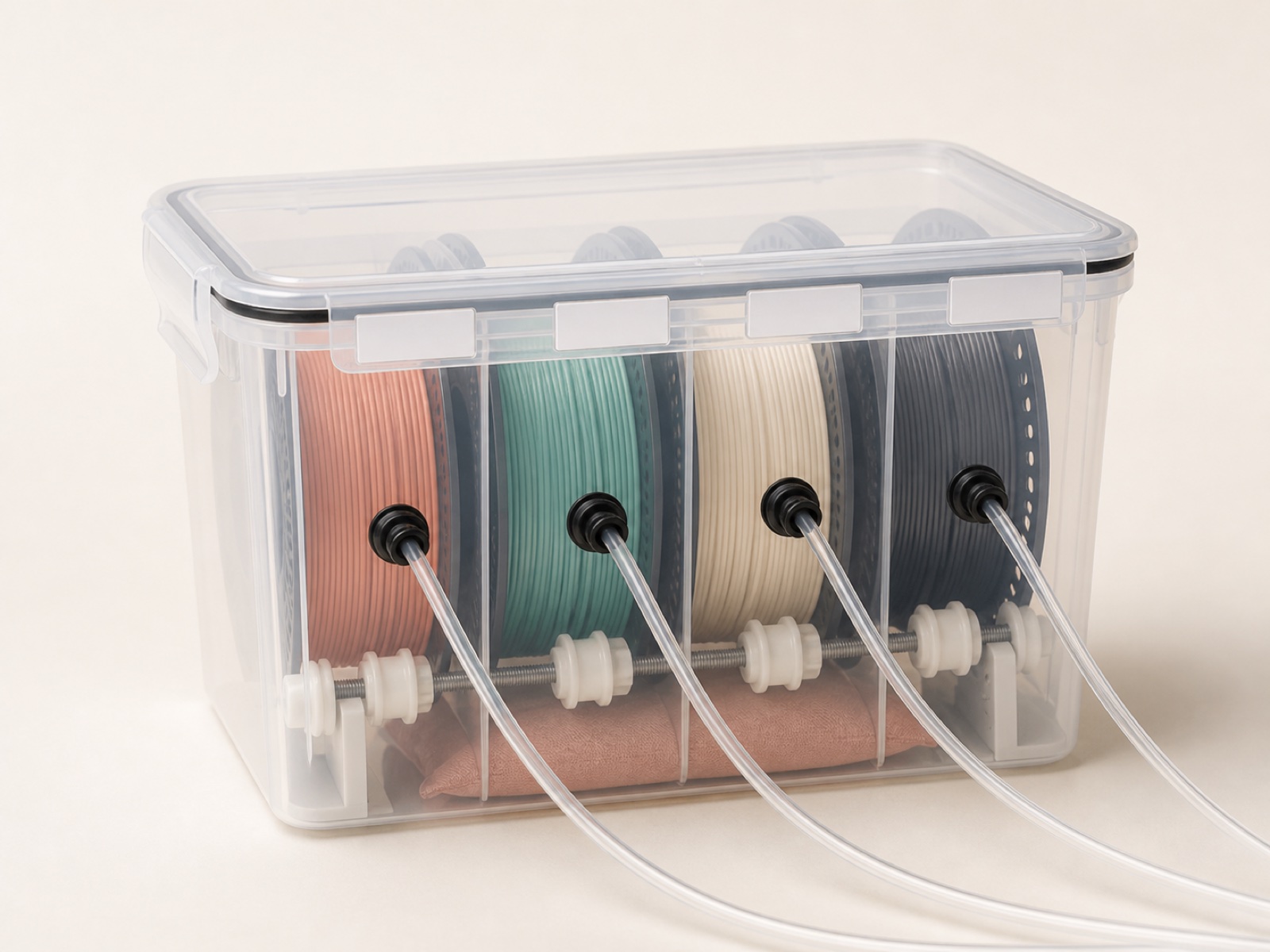

Four spools sealed in one tub, each feeding its own printer.
UPI and cards only — we do not currently offer Cash on Delivery.
Fits most 1kg spools up to 200mm diameter, 70mm width — verify below.
Will my spool fit?
| Maximum spool diameter | 200 mm |
|---|---|
| Maximum spool width | 70 mm |
| Core bore | 52–55 mm |
| Supported filament | PLA, PETG, TPU, Nylon, PA-CF |
About this product

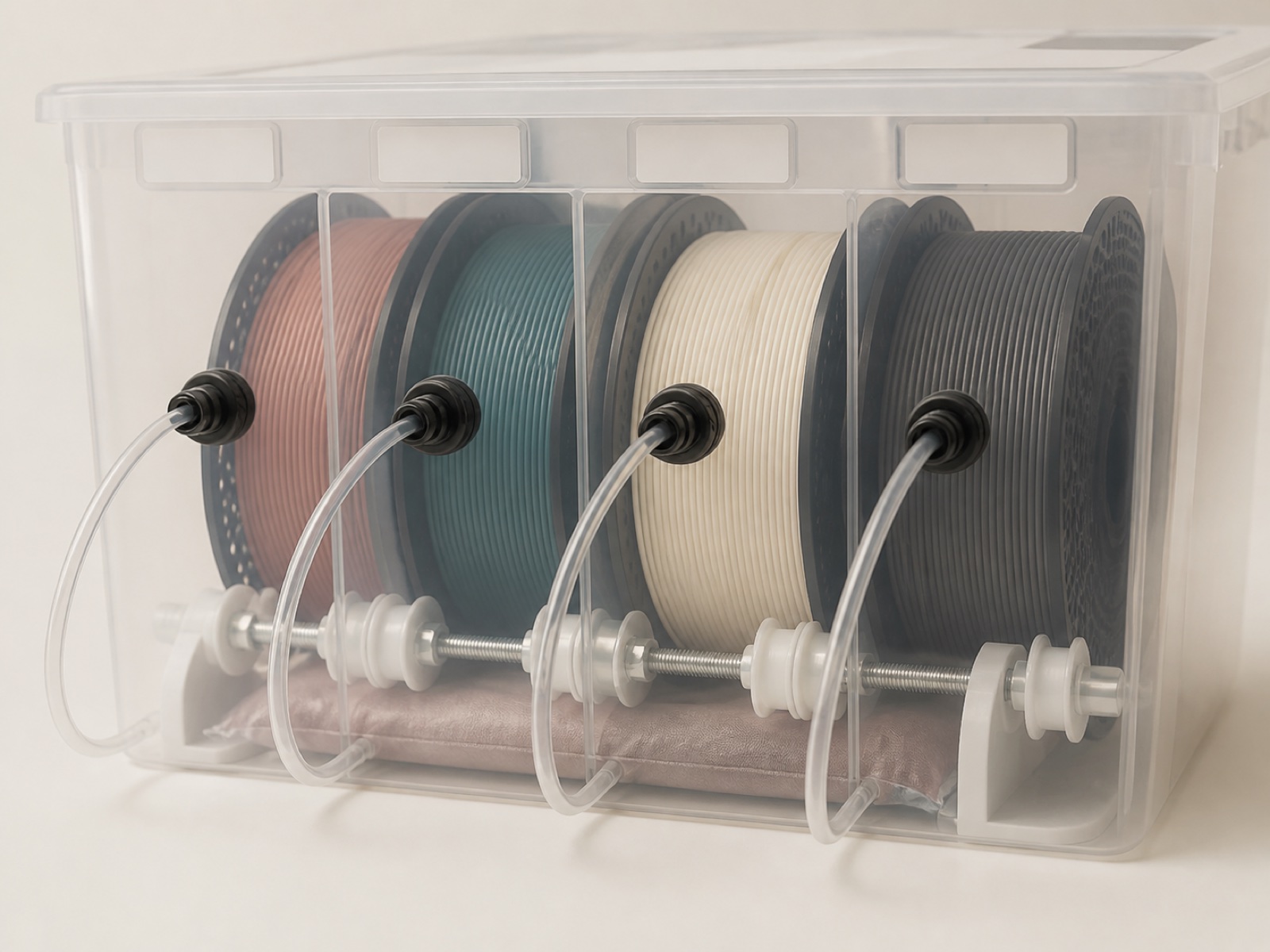

A bench running four materials needs four of them dry at once. This tub holds four 1kg spools upright in divided bays on a shared roller rod, with a PTFE bulkhead port through the front wall for each bay and a cut tube run per port. A label strip above each bay says what is loaded without opening the lid, and one desiccant pack serves the whole volume. Everything feeds while the lid stays shut.
What's included

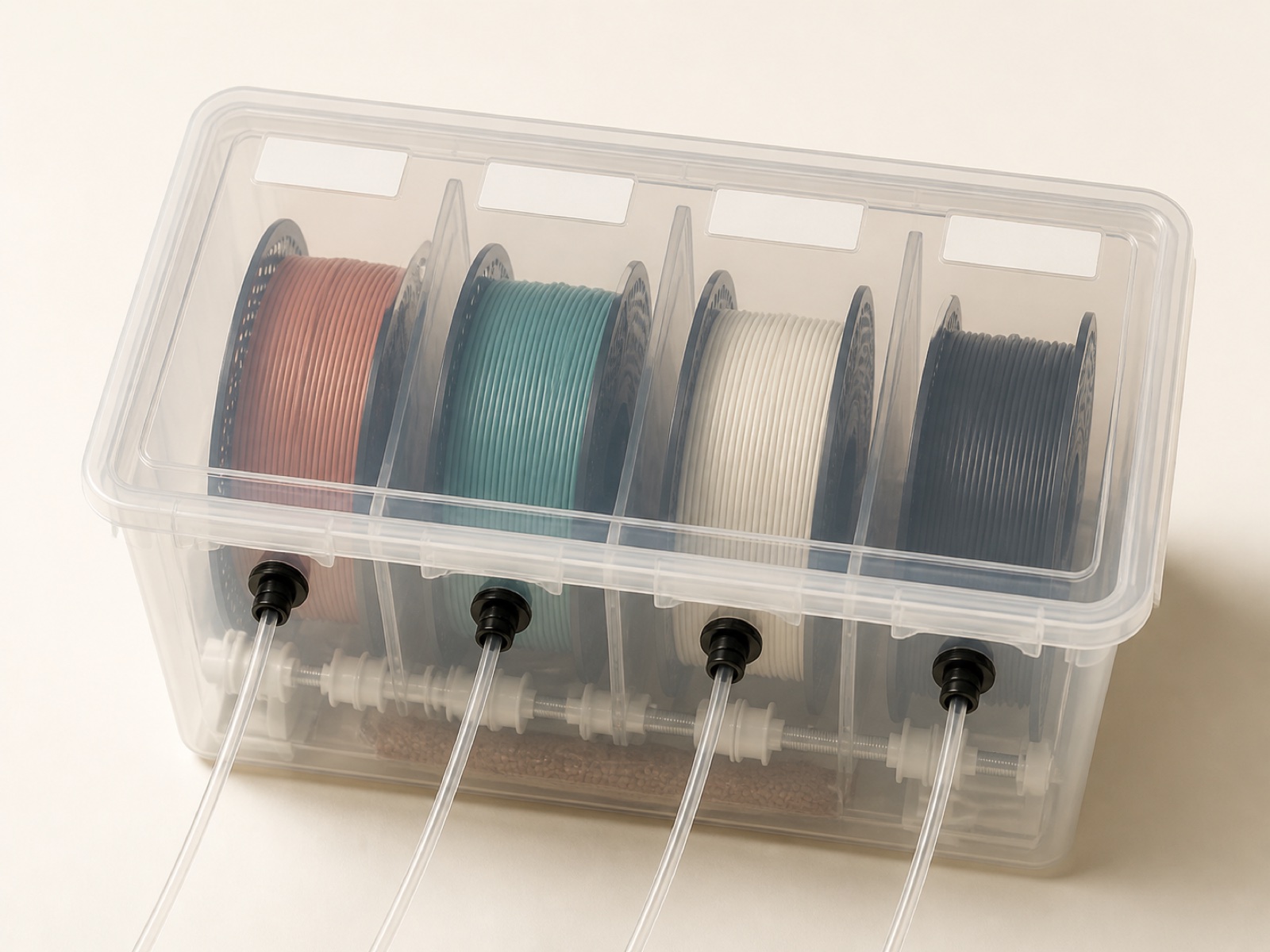

- Four divided bays, each holding a 1kg spool upright
- Shared threaded roller rod with printed rollers, so every spool turns
- Four PTFE bulkhead ports, one per bay, with a tube run for each
- Label strip on the lid rim above each bay
- Clip-on gasketed lid and one rechargeable desiccant pack
Print-direct setup, step by step
- 01Load the spool
Seat the spool on the internal bearing, label facing up.
- 02Thread the PTFE port
Feed filament through the sealed grommet without opening the lid.
- 03Latch both buckles
Engage the dual buckles until the silicone gasket compresses evenly.
- 04Print as usual
Feed straight into your extruder — the container stays sealed throughout.
Technical specifications
| Spool capacity | 4 × 1kg |
|---|---|
| Material | Clear polypropylene, silicone gasket |
| Max spool diameter | 200 mm |
| Max spool width | 70 mm |
| Ports | 4 × PTFE, 2 mm bore |
| Tube bore / OD | 2 mm / 4 mm |
| HSN | 3923 |
| GST | 18% |
FAQ
It holds four spools, not one. Four divided bays on a shared roller rod, a port through the front wall for each bay, and a tube run for every port — so four materials stay sealed and all four can feed at once.
